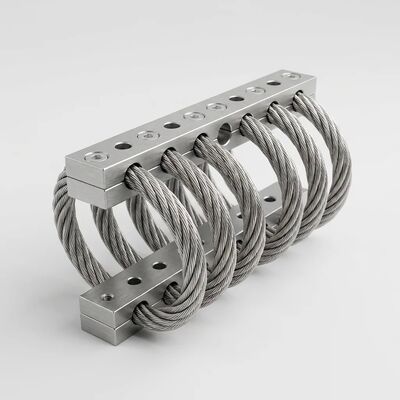

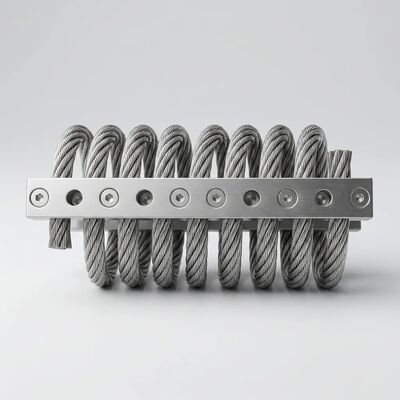

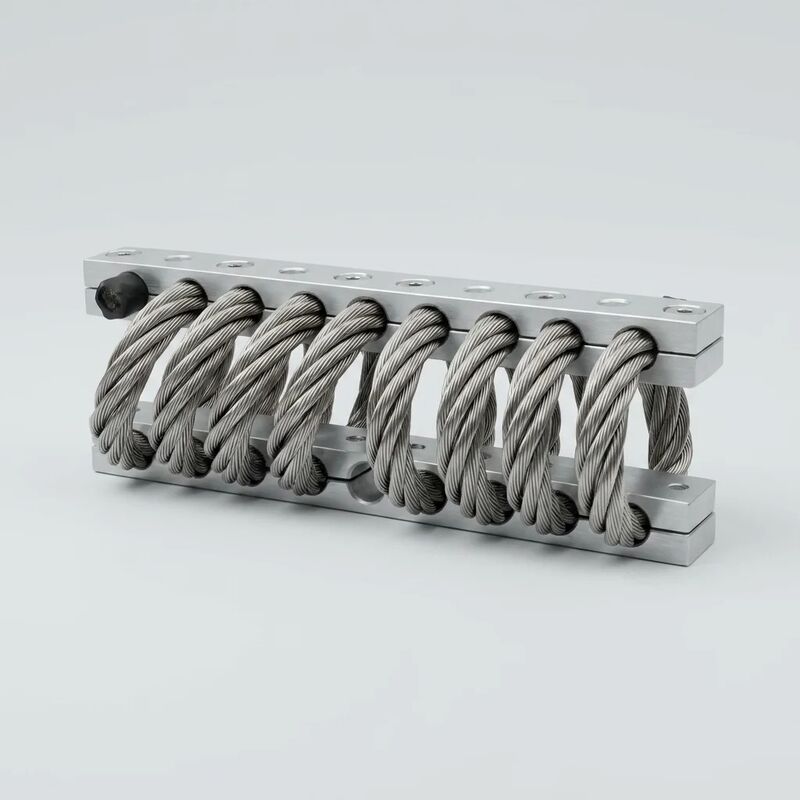

JGX-1278D-235B Zero-Maintenance Wire Rope Isolator 235N Dual-Action Shock Vibration Control 95mm for Equipment

Dual-Action Damping — How One Device Handles Both Routine Vibration and Shock Events

Conventional isolation strategies address vibration and shock as separate problems requiring separate hardware: soft mounts for continuous vibration, stiff snubbers for occasional impacts. The JGX-1278D-235B solves both problems with a single physical mechanism—Coulomb friction at strand-to-strand contact interfaces within the multi-wire stainless steel cable helix.

Mode 1: Continuous Vibration Damping (Normal Operation)

During routine equipment operation—a pump running at constant speed, a compressor cycling, a generator set producing steady power—the equipment generates low-amplitude, relatively high-frequency vibration. This vibration causes micro-displacements (typically 5-50 μm) between individual stainless steel wires within each of the 7 strands that make up the cable. At these contact points, solid friction converts kinetic energy into negligible heat. The harder the equipment vibrates, the more wire-to-wire contact interfaces engage, creating a self-regulating damping effect that requires no tuning, no adjustment, and no external power source.

Mode 2: Transient Shock Absorption (Impact Events)

When a sudden high-energy input occurs—a pump water hammer event, compressor slugging, structural collision during material handling, or a seismic tremor—the cable undergoes geometric reconfiguration at the macro scale. Individual strands slide and reposition within the multi-wire bundle, absorbing the impulse energy through combined friction (strand-level) and elastic deformation (helix-level). The figure-eight winding geometry provides a progressive stiffness increase as deformation grows, delivering inherent overload protection without mechanical hard-stops. Once the transient event concludes, the cable returns to its original geometry without permanent set.

JGX-1278D-235B — Complete Multi-Axis Performance Data

All load ratings are based on Type II characterization testing. Values represent the isolator's nominal performance with aluminum retaining bars at 23°C ambient temperature:

Dimensional Specifications & Interface Details

Environment-Specific Durability — Where Install-and-Forget Matters Most

Retaining Bar Material Selection Guide

JGX-1278 Full Series Reference

*Optimal range calculated at 40-70% of rated load for best damping performance. Actual selection should account for load distribution across multiple mounting points, dynamic loads during operation, and any asymmetry in equipment center of gravity.

Sector-Specific Applications — Engineered for Continuous Industrial Duty

Performance Characteristics Summary

• Lifetime zero-maintenance: No scheduled inspection, no re-torque, no lubrication, no replacement. Visual walk-by check during routine equipment rounds is all that is required. Projected >25-year service life under rated conditions.
• Non-linear dual-action response: 2.33* stiffness differential between vibration and shock modes in the vertical direction—stiff for everyday operation, compliant for transient impacts. A single device performs the work of a vibration mount plus a shock absorber.
• Hysteretic damping: Coulomb friction mechanism delivers 10-25% of critical damping without external dashpots or tuned-mass systems. Damping is amplitude-proportional—self-regulating without external control.
• Extreme thermal envelope: -180°C to +300°C operating range. No cold embrittlement; no hot softening. Suitable for everything from cryogenic cold boxes to turbine-adjacent installations.
• Universal chemical resistance: 304 SS is inert to hydrocarbons, solvents, hydraulic fluids, fuels, seawater, acids (dilute), alkalis, and industrial cleaning agents including CIP regimes.
• Progressive degradation: Wire rope isolators fail gracefully. Individual wire strand fracture is visually apparent during routine inspection months or years before functional load capacity is compromised—enabling planned, condition-based replacement rather than emergency response.
• 100% recyclable: Stainless steel cable + aluminum or stainless steel bars. No bonded rubber-metal waste requiring specialized disposal. No elastomer particles entering the waste stream during service or at end-of-life.

Installation Guidelines

1. Foundation flatness: Achieve ≤0.5mm flatness across each bar footprint. Use metallic shim stock (stainless steel preferred) as needed.
2. Fastener specification: M8 * 1.25, Grade 8.8 minimum. Flat washer under head, spring lock washer under nut. For stainless steel bars: use A4-80 (316 SS) fasteners to eliminate galvanic potential.
3. Torque: 18-22 N·m (aluminum bars); 25-30 N·m (stainless steel bars). Use calibrated torque wrench.
4. Alignment: ±2° maximum angular deviation between upper and lower mounting planes after final torque.
5. Clearance: Maintain ≥15mm gap around cable assembly in all directions to allow full deformation envelope.
6. Quantity: Total equipment weight (N) ÷ target per-isolator load (94-165 N for 235B) = minimum isolator count. Round up to next even number for symmetric distribution.

Frequently Asked Questions

Q: What is the payback period for choosing wire rope isolators over rubber mounts?

For most industrial installations, the crossover point occurs at the first scheduled replacement interval for elastomeric mounts—typically 3-5 years after initial installation. At that point, the avoided cost of replacement mounts, labor for change-out, and production downtime exceeds the initial price premium of the JGX-1278D-235B. From Year 5 onward, wire rope isolators generate pure savings. For remote or difficult-access installations where the logistics cost of a service visit is high, the payback can be immediate—on Day 1 of installation.

Q: Can I use these isolators outdoors without any weather protection?

Yes. The all-metal construction requires no protective covers, boots, or shelters. For outdoor installations within 5km of coastline or in heavy industrial atmospheres, we recommend the stainless steel bar option (Config C) to maximize corrosion resistance. For standard inland outdoor use, hard-anodized aluminum bars (Config B) provide excellent long-term durability.

Q: How do I know if my equipment weight is suitable for the JGX-1278D-235B?

Calculate the supported weight per mounting point. If it falls between 9.5 kg and 17 kg per isolator (approximately 94-165 N), the JGX-1278D-235B is an appropriate choice. For loads above or below this range, select a different model from the JGX-1278 series. Our applications engineers provide complimentary load verification for all quotation requests—simply share your equipment weight and mounting layout.

Q: Does the stainless steel cable ever need lubrication?

No. The damping mechanism relies on dry friction between stainless steel wire strands. Lubrication would actually reduce damping performance by lowering the inter-strand friction coefficient. The cable should remain dry and free of any grease, oil, or coating applied to the strand contact surfaces. If the cable becomes contaminated with process fluids, a simple wipe-down with solvent is sufficient to restore full performance—no disassembly or replacement required.

Q: What happens if an isolator is overloaded beyond its rated capacity?

The JGX-1278D-235B has a progressive hardening characteristic: as deformation increases, stiffness rises non-linearly, providing inherent overload protection. A brief overload (e.g., during equipment installation or a transient event) will cause additional deflection but will not permanently damage the isolator—the cable returns to its original geometry once the overload is removed. However, sustained overload beyond the rated static capacity will accelerate wire strand wear and should be avoided through proper sizing. If in doubt, select the next higher-rated model in the JGX-1278 family.

Q: Are these isolators suitable for seismic applications?

Yes. The multi-directional damping capability and non-linear stiffness curve make wire rope isolators well-suited for seismic protection of equipment. The JGX-1278D-235B provides simultaneous isolation in all three translational axes—critical during seismic events where ground motion has both horizontal and vertical components. For seismic-specific applications, please provide your project's design-basis earthquake parameters (spectral acceleration, predominant frequency range) and our engineering team will verify suitability or recommend an optimized configuration.

Quality & Manufacturing Standards

JGX-1278D-235B isolators are manufactured under ISO 9001:2015 quality management with the following production controls:

• Incoming material: Mill certification for 304 SS wire (ASTM A313/A313M), 6061-T6 aluminum bar (ASTM B221/B221M)
• Cable winding: CNC-controlled helical winding with real-time tension data acquisition (±5% of nominal)
• Crimping: Hydraulic press with force-displacement monitoring; statistical process control (SPC) charting per production lot
• Dimensional: Coordinate measuring machine (CMM) verification of hole position, countersink geometry, and thread class
• Performance: Lot-acceptance static load-deflection test at AQL 1.0, Normal Level II per ISO 2859-1
• Anodizing: Coating thickness verification per ISO 2360; seal quality per ISO 2143 (dye spot test)
