JGX-2228D-960B Wire Rope Vibration Isolator Fail-Safe Maximum Safety Design Stable Stiffness for Heavy Equipment

JGX-2228D-960B Wire Rope Vibration Isolator – Engineered for Demanding Industrial Environments

The JGX-2228D-960B wire rope vibration isolator represents a premium vibration control solution engineered specifically for heavy industrial machinery, marine propulsion systems, and precision instrumentation where fail-safe structural integrity is a mandatory requirement. Manufactured by Xi'an Hoan Microwave Co. Ltd., this isolator leverages advanced all-metal construction to deliver predictable, long-term vibration isolation performance.

Product Overview

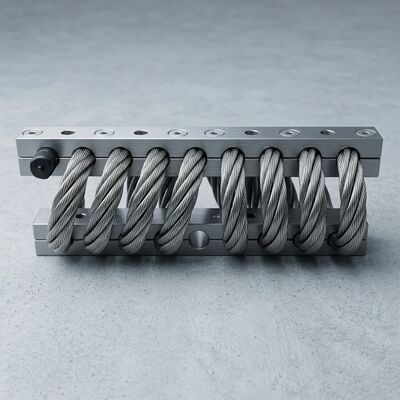

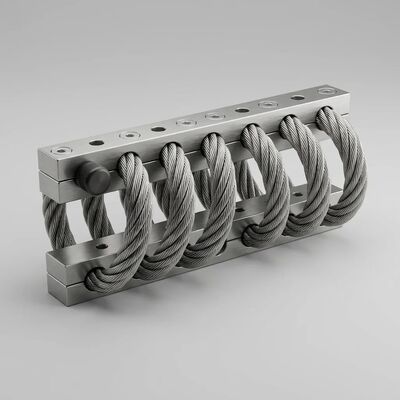

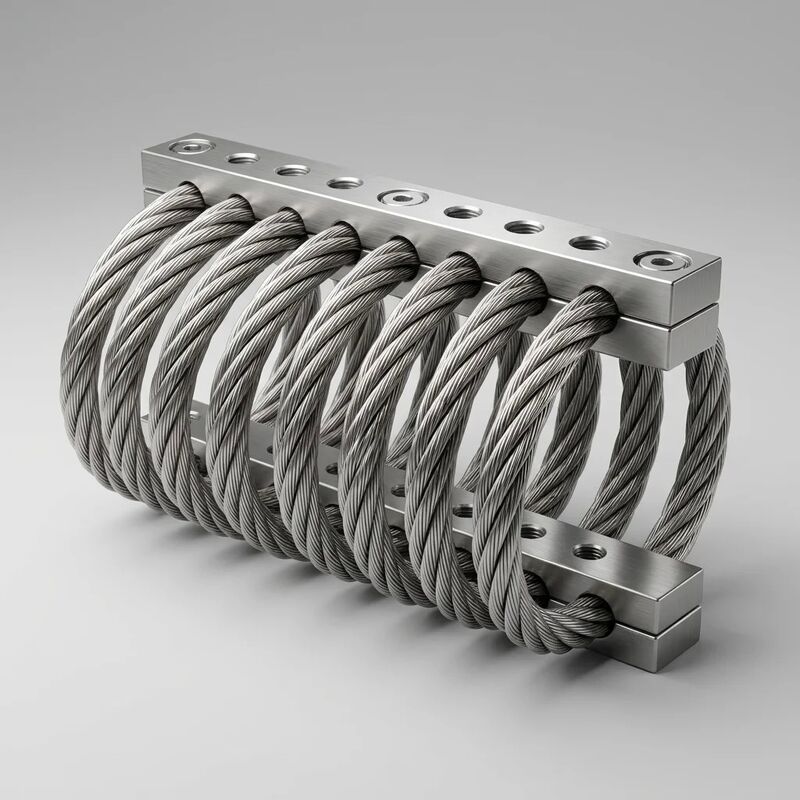

Wire rope isolators are comprised of high-strength stainless steel stranded cable threaded through aluminum alloy retaining bars, creating a robust assembly that effectively attenuates both shock and vibration across multiple axes simultaneously. The JGX-2228D-960B belongs to the JGX-2228 series, a heavy-duty line designed for applications requiring substantial load-bearing capacity combined with exceptional damping characteristics. With its corrosion-resistant all-metal construction, this isolator remains environmentally stable and unaffected by temperature extremes, chemicals, oils, ozone, and abrasive contaminants.

Fail-Safe Structure for Maximum Safety

The JGX-2228D-960B incorporates a fail-safe design philosophy where each wire rope loop functions as an independent load-bearing element. Should any individual wire strand experience fatigue or damage over decades of service, the remaining strands and adjacent loops continue to provide full isolation capability. This redundant architecture eliminates single-point failure risks and ensures uninterrupted operation of critical industrial equipment during extreme events such as seismic activity, equipment malfunction, or accidental impact loading.

Stable Dynamic Stiffness Over Time

Unlike elastomeric rubber mounts that exhibit creep, compression set, and progressive hardening due to oxidation and environmental exposure, the all-metal JGX-2228D-960B maintains consistent dynamic stiffness characteristics throughout its entire operational life. Key performance attributes include:

• No creep or ageing – mechanical properties remain stable indefinitely
• High internal damping – effectively dissipates vibration energy across a broad frequency spectrum
• Excellent combined shock and vibration isolation – protects sensitive equipment from both low-amplitude sustained vibration and high-energy transient shocks
• Wide operating temperature range – performs reliably from arctic conditions to high-temperature industrial environments
• Not affected by chemical agents, seawater, ozone, or UV radiation – suitable for offshore, coastal, and chemical processing installations

Fully Customizable Layouts and Engineering Support

Every installation has unique spatial constraints and performance requirements. Xi'an Hoan provides comprehensive engineering support to tailor the JGX-2228D-960B to your specific application:

• Mounting Bar Material Options: Stainless steel or aluminum alloy 6061-T6 available; aluminum bars can be specified with white anodizing (standard hardness) or hard anodizing (enhanced surface hardness for abrasive environments)
• Mounting Configurations: Multiple mounting orientations supported including base-mounted, side-mounted, and 45-degree compression arrangements
• Custom Hole Patterns: Mounting hole spacing and diameter can be modified to match existing equipment footprints
• Wire Rope Specifications: Cable diameter, loop count, and winding geometry can be adjusted to optimize the load-deflection curve for your specific mass and frequency requirements
• Rapid Prototyping: Custom configurations can be prototyped rapidly and economically for evaluation before full production commitment

Technical Specifications – JGX-2228D-960B

Typical Applications

Mounting Bar Surface Treatment Options

• White Anodizing: Standard surface treatment that increases aluminum surface hardness while maintaining the natural aluminum appearance. Suitable for most industrial environments.
• Hard Anodizing: Enhanced surface treatment producing a darker finish with significantly greater hardness. Recommended for applications involving abrasive particulates, frequent washdown procedures, or mechanical wear concerns.

Key Characteristics

• Extremely rugged construction with long operational lifespan
• Rapid and economical prototyping available for custom configurations
• Wide variety of fitting and mounting options
• All-axes vibration and shock protection in a single compact assembly
• Zero maintenance requirement – no lubrication, no adjustment, no periodic replacement
• Environmentally robust – unaffected by UV exposure, ozone, moisture, salt spray, and industrial chemicals

Company Information

Xi'an Hoan Microwave Co. Ltd. is a professional manufacturer of vibration isolators and mounts, providing premium energy absorption and vibration isolation solutions to industrial, marine, energy, and commercial sectors worldwide. Established in 2005, the company has grown to over 500 employees including more than 100 technical experts. Our product portfolio encompasses wire rope isolators, vibration mounts, friction dampers, shock absorbers, and LC filters. We serve customers across 31 Chinese provinces and export to over 25 countries, supporting applications spanning motors, fans, punch machines, elevators, compressors, chemical equipment, railway systems, bridges, large-scale construction, and mechanical equipment.

Contact us today to discuss how the JGX-2228D-960B can be customized to meet your specific equipment isolation requirements, or consult with one of our application engineers for a detailed technical proposal.
