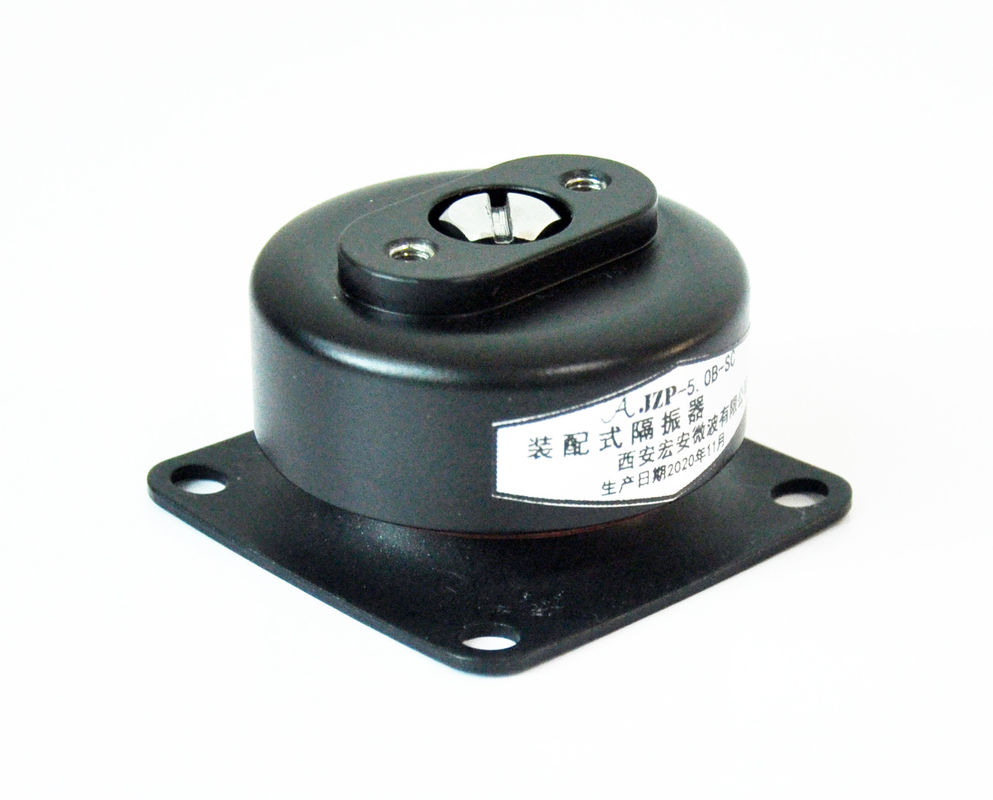

Name: JZP-1.0B-SC Modular Rubber Shock Absorber with M5 Mounting Hole Size 1 inch Maximum Deflection and 100-1000 lbs/in Spring Rate
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-1.0B-SC
Availability: InStock

Домой > продукты > резиновый амортизатор удара >

JZP-1.0B-SC Modular Rubber Shock Absorber with M5 Mounting Hole Size 1 inch Maximum Deflection and 100-1000 lbs/in Spring Rate

M5 Mounting Hole Size Rubber Shock Absorber

1 inch Maximum Deflection Vibration Isolator

100-1000 lbs/in Spring Rate On-Vehicle Vibration Isolator

Место происхождения:

Китай

Фирменное наименование:

Hoan

Номер модели:

JZP-1.0B-SC

Свяжитесь с нами

Запросите цитату

JZP-1.0B-SC Modular Rubber Shock Absorber with M5 Mounting Hole Size 1 inch Maximum Deflection and 100-1000 lbs/in Spring Rate

Подробная информация о продукции

Ширина:

60 мм

Основные компоненты:

Двигатель, шестерня

Форма:

Цилиндрический

Коррозионная стойкость:

Устойчив к коррозии

OEM:

Да

Монтажный размер отверстия:

Совместимость:

Подходит для большинства стандартных систем амортизаторов.

Гибкость:

Гибкий

Тип:

Шоковой поглотитель

Максимальное отклонение:

1 дюйм

Весенняя ставка:

100-1000 фунтов/дюйм

Сопротивление давлению:

Высокий

Высокий:

30 мм

Частота вибрации:

5-50HZ

Выделить:

M5 Mounting Hole Size Rubber Shock Absorber

1 inch Maximum Deflection Vibration Isolator

100-1000 lbs/in Spring Rate On-Vehicle Vibration Isolator

Условия оплаты и доставки

Количество мин заказа

Условия оплаты

LC,D/A,D/P,T/T,Western Union,MoneyGram

СОБЩЕННЫЕ ПРОДУКТЫ

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Лучшая цена

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

Лучшая цена

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

Лучшая цена

JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

Лучшая цена

Свяжитесь с нами

86-29-88292913

Свяжитесь сейчас

Описание продукта

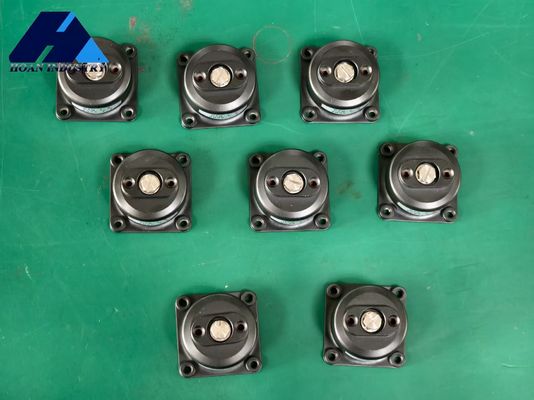

JZP-1.0B-SC On-Vehicle Modular Vibration Isolators

The Ultimate Protection and Stability Solution Rubber Shock Absorber

JZP-B-SC Series

Master Turbulence, Safeguard Core Stability: Xi'an Hoan's JZP Series Vibration Isolators redefine on-vehicle equipment stability with military-grade technology.

On moving vehicles, the greatest threat to precision electronic equipment comes from sustained vibration and impact. Drawing on military technology heritage, Xi'an Hoan Microwave Co., Ltd. developed the JZP Series as the "dynamic stability cornerstone" for on-vehicle precision equipment.

The JZP Series features an advanced modular structure combining high-damping elastic materials with precision-engineered mechanical components. This creates an efficient energy conversion system that absorbs and dissipates destructive vibrations, establishing a reliable buffer between equipment and vibration sources.

Unlike traditional shock-absorbing solutions, the JZP Series offers unparalleled adaptability. Its modular design allows flexible configuration for cabinets, servers, communication hosts, or precision sensors based on weight, center of gravity, and vibration sensitivity requirements.

Essential for military communications, emergency command, and remote sensing monitoring applications, these isolators enable high-tech equipment to maintain laboratory-grade stability even during high-speed vehicle movement.

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameters

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-2.0B-SC	2.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-2.5B-SC	2.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-3.0B-SC	3.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-3.5B-SC	3.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-4.0B-SC	4.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-5.0B-SC	5.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-5.5B-SC	5.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-6.0B-SC	6.0	≤0.3	-45～+65	41.5±5	100G12times	8

Performance Curves

Vibration Characteristics

Impact Characteristics
