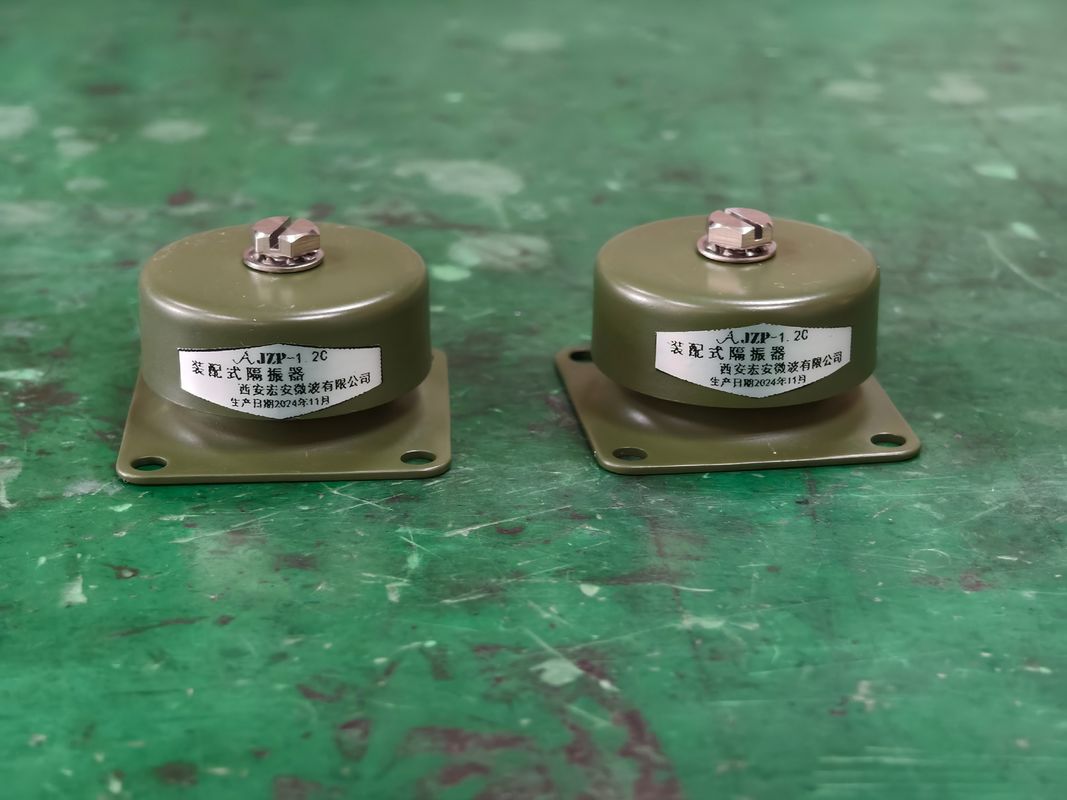

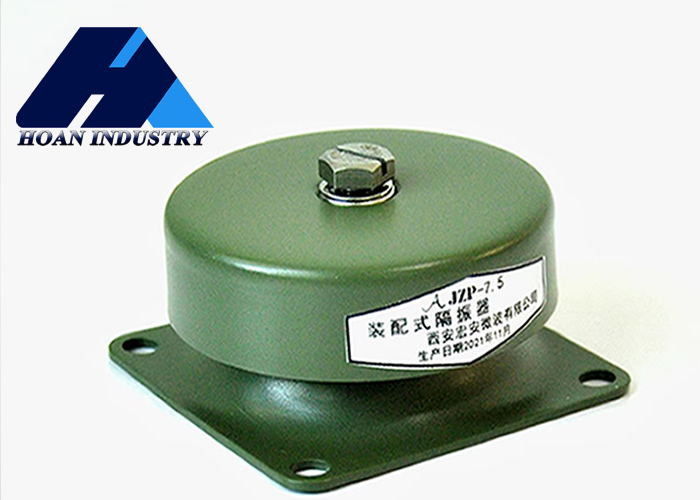

Name: JZP-6.0-SC-SC1 Series Rubber Shock Absorber with 5Hz Isolation Frequency 6kg Maximum Load Capacity and M5 Mounting Holes
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: ДЖЗП-6.0СК-СК1
Availability: InStock

Домой > продукты > резиновый амортизатор удара >

JZP-6.0-SC-SC1 Series Rubber Shock Absorber with 5Hz Isolation Frequency 6kg Maximum Load Capacity and M5 Mounting Holes

5Hz Isolation Frequency Rubber Shock Absorber

6kg Maximum Load Capacity Vibration Isolator

M5 Mounting Holes Friction Damping Vibration Isolator

Место происхождения:

КИТАЙ

Фирменное наименование:

Hoan

Номер модели:

ДЖЗП-6.0СК-СК1

Свяжитесь с нами

Запросите цитату

JZP-6.0-SC-SC1 Series Rubber Shock Absorber with 5Hz Isolation Frequency 6kg Maximum Load Capacity and M5 Mounting Holes

Подробная информация о продукции

Частота изоляции:

5 Гц

Модель:

JZP

Максимальная грузоподъемность:

6 кг

Материал:

Резина

Appliocation:

Автомобили, машины, двигатели

Рабочая частота:

Зависит от размера и типа

Функция:

Поглощать энергию и рассеивать ее в виде тепла

Общая ширина:

50 мм

Долговечность:

Долгоиграющий

характеристика:

широкая рабочая частота, длительный срок службы

Скорость пружины:

100-1000 фунтов/дюйм

Монтажные отверстия:

Структура:

твердый

Выделить:

5Hz Isolation Frequency Rubber Shock Absorber

6kg Maximum Load Capacity Vibration Isolator

M5 Mounting Holes Friction Damping Vibration Isolator

Условия оплаты и доставки

Количество мин заказа

Условия оплаты

L/C, D/A, D/P, T/T, Western Union, Moneygram

СОБЩЕННЫЕ ПРОДУКТЫ

JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing

Лучшая цена

JZP-10.5-SC-SC1 Rubber Shock Absorber with 10Hz to 100Hz Frequency Range and -55 to +120 Working Temperature for Horizontal/Vertical Installation

Лучшая цена

JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery

Лучшая цена

JZP-7.5-SC-SC1 Friction Damping Vibration Isolator with Up to 90% Vibration Isolation M5 Mounting Thread Size and 50N/mm Axial Stiffness

Лучшая цена

Свяжитесь с нами

86-29-88292913

Свяжитесь сейчас

Описание продукта

JZP-6.0-SC-SC1 Series - The Most Versatile Vibration Isolation Solution for Industrial Applications

Customized Vibration Isolation Solutions

Xi'an Hoan Microwave's JZP-SC-SC1 series friction damping vibration isolators are engineered for maximum application flexibility in diverse industrial scenarios. These solutions can be precisely tailored through selection, combination, and fine-tuning to meet specific vibration control requirements.

Key Features

Modular design accommodates loads from dozens of kilograms to several tons
Flexible configuration options for individual use or combined systems
Optimized for various applications from laboratory balances to CNC machining centers
Custom development available for specialized requirements
Special surface treatments (nickel plating, passivation) for cleanroom environments
Adjustable damping parameters for impact-resistant applications

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	b (mm)
JZP-SC-SC1	60	36	24.5	50	60	M5	∅5.5	5	28

Technical Parameters

Model	Nominal Load (KG)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Limited Period
JMZ-3.2-SC-SC1	3.2	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-4.2-SC-SC1	4.2
JMZ-5.2-SC-SC1	5.2
JMZ-6.0-SC-SC1	6.0
JMZ-7.0-SC-SC1	7.0
JZP-7.5-SC-SC1	7.5
JZP-9.0-SC-SC1	9.0
JZP-10.5-SC-SC1	10.5
JZP-13.5-SC-SC1	13.5
JZP-15-SC-SC1	15

Customer Implementation

This engineering-focused approach ensures the JZP-SC-SC1 series provides optimal vibration isolation solutions tailored to each customer's specific equipment and operational requirements.
