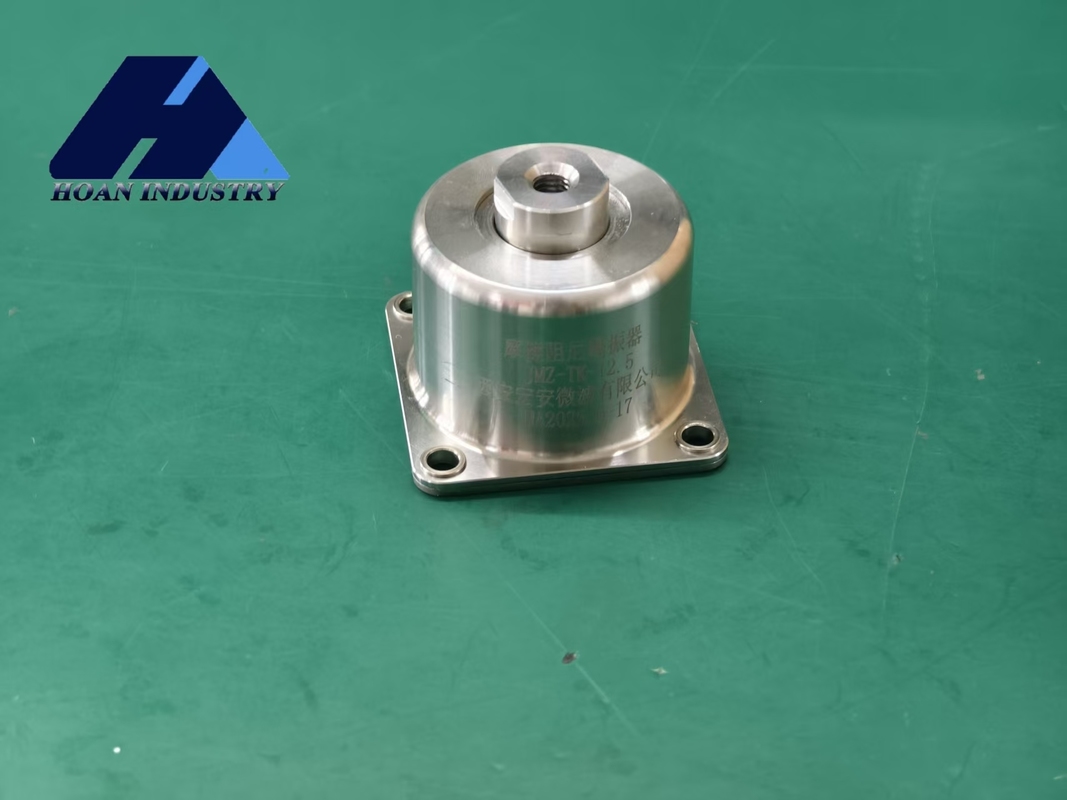

Name: JMZ-TK1-7A Vibration Isolator with 4 inches Diameter for High-Frequency and Ultra-Low Frequency Vibration Control
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: ЯМЗ-ТК1-7А
Availability: InStock

Домой > продукты > Пролетный изолятор >

JMZ-TK1-7A Vibration Isolator with 4 inches Diameter for High-Frequency and Ultra-Low Frequency Vibration Control

4 inches Diameter Vibration Isolator

High-Frequency Vibration Control Spring Isolator

Ultra-Low Frequency Vibration Control JMZ-TK Series

Место происхождения:

КИТАЙ

Фирменное наименование:

Hoan

Номер модели:

ЯМЗ-ТК1-7А

Свяжитесь с нами

Запросите цитату

JMZ-TK1-7A Vibration Isolator with 4 inches Diameter for High-Frequency and Ultra-Low Frequency Vibration Control

Подробная информация о продукции

Цвет:

Серебро

Эффективность изоляции:

95%

Приложения:

Промышленные двигатели

Применимые отрасли:

Энергия и добыча полезных ископаемых

Структура:

Спиральный

Гарантия:

1 год

Долговечность:

Долгоиграющий

Размеры:

Различные размеры доступны

Шоковое сопротивление:

Сильный

Устойчивость:

Высокий

Монтажный тип:

Внедрять

Диаметр:

4 дюйма

Расположение выставочного зала:

Никто

Выделить:

4 inches Diameter Vibration Isolator

High-Frequency Vibration Control Spring Isolator

Ultra-Low Frequency Vibration Control JMZ-TK Series

Условия оплаты и доставки

Количество мин заказа

Условия оплаты

L/C, D/A, D/P, T/T, Western Union, Moneygram

СОБЩЕННЫЕ ПРОДУКТЫ

JMZ-TK1-50A Helical Structure Spring Steel Friction Damping Vibration Isolator with Vertical Mounting Orientation

Лучшая цена

JMZ-TK1-40A Customizable Cylindrical Friction Damping Vibration Isolator with Mounting Installation for Energy & Mining

Лучшая цена

JMZ-TK-8A Customized Solutions Stainless Steel Spring Isolator with Excellent Shock Absorption and Easy Installation

Лучшая цена

JMZ-TK-7A Corrosion Resistant Friction Damping Isolator with Up to 95% Isolation Efficiency for Vibration Isolation in Energy & Mining

Лучшая цена

Свяжитесь с нами

86-29-88292913

Свяжитесь сейчас

Описание продукта

JMZ-TK1-7A The Ultimate Vibration Isolator for High-Frequency and Ultra-Low Frequency Vibration Control in Scientific Research

JMZ-TK Series

Raising the Precision Ceiling of Scientific Research: The Value of JMZ-TK in Precision Measuring Instruments

In cutting-edge scientific research, measurement precision often determines the upper limit of new discoveries. Equipment such as scanning electron microscopes (SEM), atomic force microscopes (AFM), lithography machines, and gravitational wave detection devices are sensitive to environmental vibrations at the nanometer or even picometer level. The JMZ-TK series vibration isolators from Xi'an Hoan Microwave are precisely "ultra-quiet platforms" tailor-made for these cutting-edge scientific research instruments that pursue extreme precision.

The requirements for vibration isolation systems in these instruments are extremely stringent: they must not only isolate medium-to-high frequency vibrations, but also effectively address ultra-low frequency (<1Hz) ground microtremor noise. The JMZ-TK series perfectly meets this challenge through the combination of its low natural frequency design and high damping characteristics.

Combating Ground Microtremors: Through optimized design, its vertical natural frequency can be as low as 3-5Hz or even lower, enabling effective isolation of the main frequency band (1-20Hz) of ground microtremors.
Suppressing Internal Microvibrations: Microvibrations are also generated by internal components of high-precision instruments, such as scanning mechanisms and vacuum pumps. The high damping of JMZ-TK can quickly attenuate the transmission of these internal vibrations, preventing resonance from forming inside the instrument structure and interfering with measurement signals.

When researchers place samples under an electron microscope to observe atomic structures, or when a lithography machine etches nanoscale circuits on a silicon wafer, the JMZ-TK builds a nearly absolute static reference frame beneath the equipment. It eliminates image blurring, measurement drift, and circuit jagged edges caused by vibrations, directly improving the equipment's ultimate resolution and repeat measurement precision. It can be said that the JMZ-TK series is an unsung hero that helps scientists explore the unknown and expand the boundaries of human cognition.

Structural Dimension Diagram

Model	Installation dimensions(mm)	Overall dimensions(mm)
JMZ-TK1-25A/40A/50A	B: 63	A: 78
JMZ-TK1-25A/40A/50A	M: 12	C: 20

Technical Parameter Table

Model	Nominal Load (N)	Load Range (N)	Natural Frequency fn≤(Hz)	Loading Working Height H0±1(mm)	Maximum Vibration Transmissibility	Impact Resistance Test	Service Life (year)
JMZ-TK-2.5A	25	20～30	33	42	3	100g	10
JMZ-TK-4A	40	30～50
JMZ-TK-5A	50	40～60

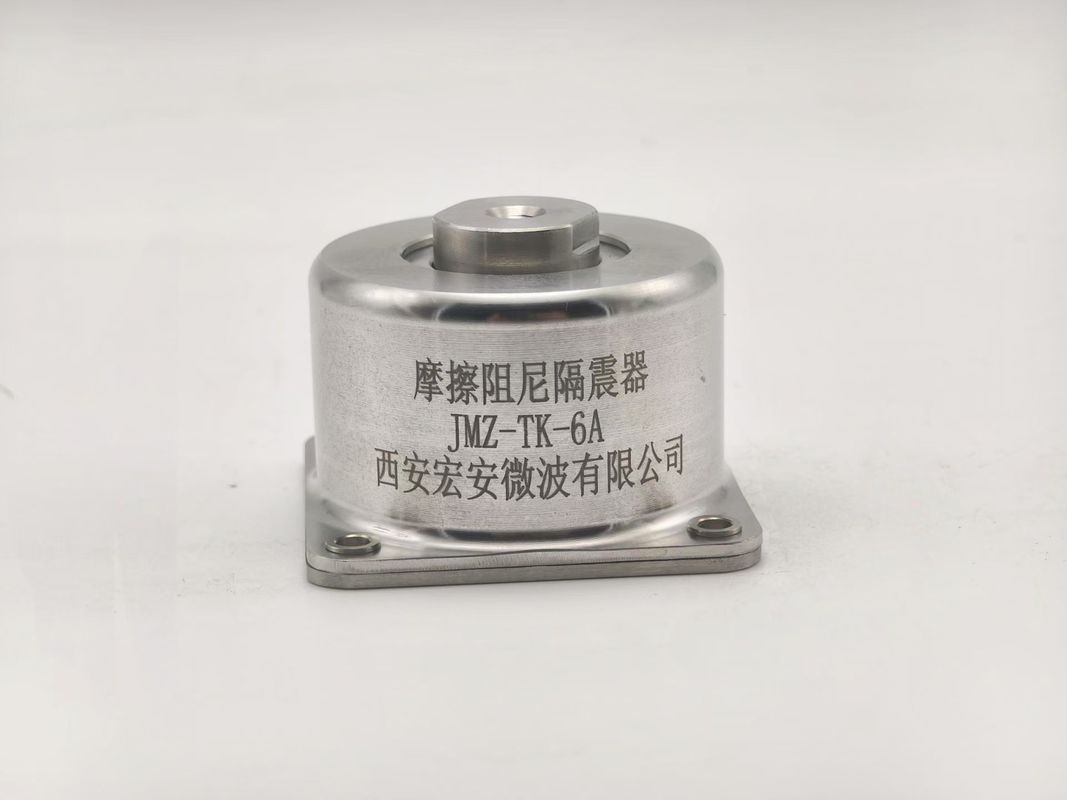

JMZ-TK-6A	60	50～70
JMZ-TK-7A	70	60～80
JMZ-TK-8A	80	70～90
